Android中ANR的触发机制-BroadcastReceiver篇

上一篇分析了Service中的ANR触发机制，这一篇来分析BroadcastReceiver的ANR触发机制。

触发机制分析

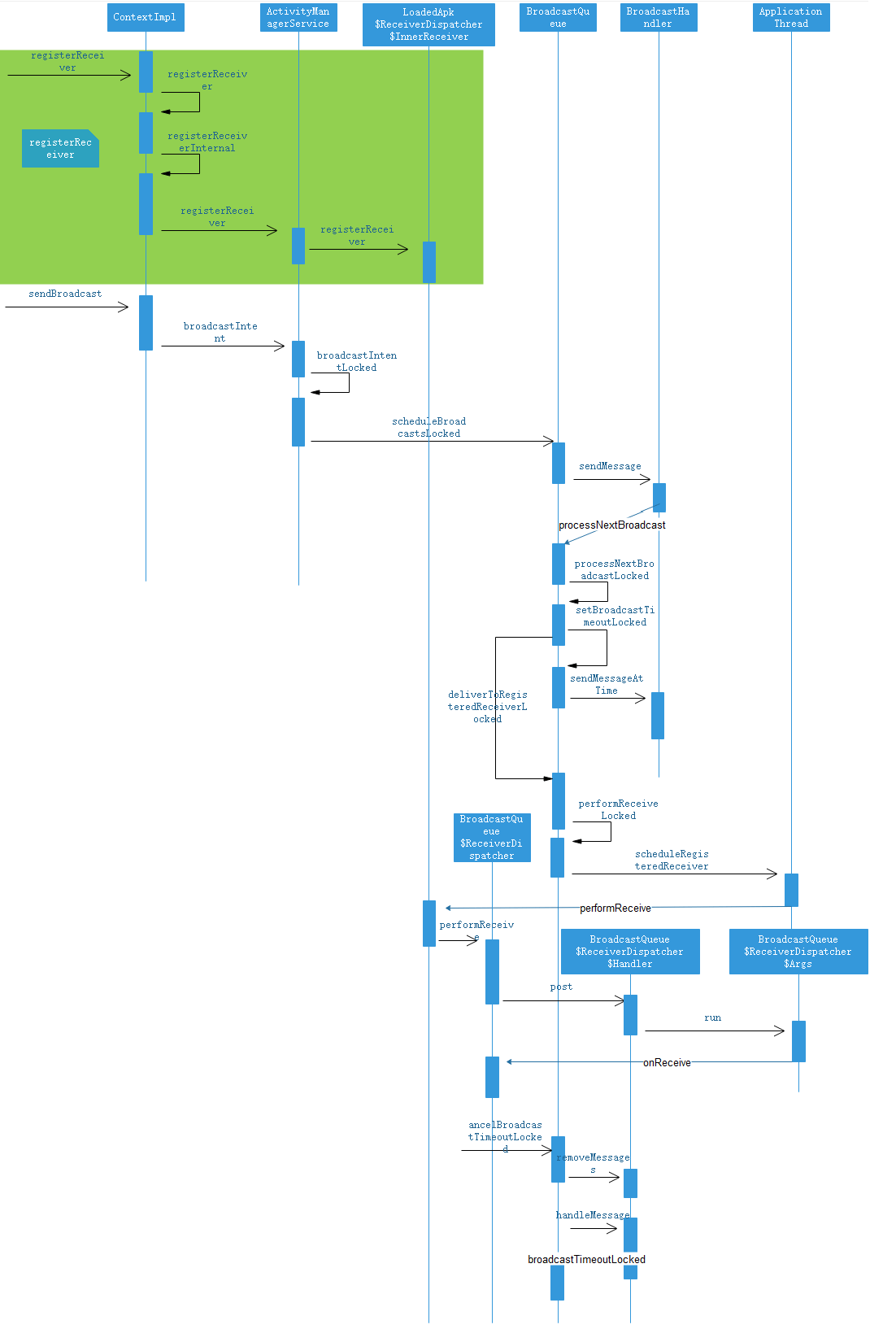

附上时序图

BroadcastReceiver的ANR机制

注册过程

要分析BroadcastReceiver的ANR机制，先来看BroadcastReceiver的register过程，静态注册这里不作分析。

不管Activity还是Service中的registerReceiver，最终都是调用ContextWrapper中的registerReceiver方法

1
2
3
4
5
@Override
    public Intent registerReceiver(
        BroadcastReceiver receiver, IntentFilter filter) {
        return mBase.registerReceiver(receiver, filter);
    }

看下ContextImpl的registerReceiver方法

1
2
3
4
5
//ContextImpl
@Override
    public Intent registerReceiver(BroadcastReceiver receiver, IntentFilter filter) {
        return registerReceiver(receiver, filter, null, null);
    }

这个方法调用另一个重载方法

1
2
3
4
5
6
7
//ContextImpl
@Override
    public Intent registerReceiver(BroadcastReceiver receiver, IntentFilter filter,
            String broadcastPermission, Handler scheduler) {
        return registerReceiverInternal(receiver, getUserId(),
                filter, broadcastPermission, scheduler, getOuterContext(), 0);
    }

这个方法调用registerReceiverInternal方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
//ContextImpl
private Intent registerReceiverInternal(BroadcastReceiver receiver, int userId,
            IntentFilter filter, String broadcastPermission,
            Handler scheduler, Context context, int flags) {
        IIntentReceiver rd = null;
        if (receiver != null) {
            if (mPackageInfo != null && context != null) {
                if (scheduler == null) {
                    scheduler = mMainThread.getHandler();
                }
                rd = mPackageInfo.getReceiverDispatcher(
                    receiver, context, scheduler,
                    mMainThread.getInstrumentation(), true);
            } else {
                if (scheduler == null) {
                    scheduler = mMainThread.getHandler();
                }
                rd = new LoadedApk.ReceiverDispatcher(
                        receiver, context, scheduler, null, true).getIIntentReceiver();
            }
        }
        try {
            //调用AMS的registerReceiver方法
            final Intent intent = ActivityManager.getService().registerReceiver(
                    mMainThread.getApplicationThread(), mBasePackageName, rd, filter,
                    broadcastPermission, userId, flags);
            if (intent != null) {
                intent.setExtrasClassLoader(getClassLoader());
                intent.prepareToEnterProcess();
            }
            return intent;
        } catch (RemoteException e) {
            throw e.rethrowFromSystemServer();
        }
    }

调用AMS的registerReceiver方法，这里传入了LoadedAPK$ReceiverDispatcher类型的对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
//AMS
public Intent registerReceiver(IApplicationThread caller, String callerPackage,
            IIntentReceiver receiver, IntentFilter filter, String permission, int userId,
            int flags) {
            //...
            ReceiverList rl = mRegisteredReceivers.get(receiver.asBinder());
            if (rl == null) {
                rl = new ReceiverList(this, callerApp, callingPid, callingUid,
                        userId, receiver);
                if (rl.app != null) {
                    final int totalReceiversForApp = rl.app.receivers.size();
                    if (totalReceiversForApp >= MAX_RECEIVERS_ALLOWED_PER_APP) {
                        throw new IllegalStateException("Too many receivers, total of "
                                + totalReceiversForApp + ", registered for pid: "
                                + rl.pid + ", callerPackage: " + callerPackage);
                    }
                    rl.app.receivers.add(rl);
                } else {
                    try {
                        receiver.asBinder().linkToDeath(rl, 0);
                    } catch (RemoteException e) {
                        return sticky;
                    }
                    rl.linkedToDeath = true;
                }
                mRegisteredReceivers.put(receiver.asBinder(), rl);
            }
            //...
    }

在这里将信息保存

发送广播过程

在ContextImpl中调用sendBroadcast方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
//ContextImpl
@Override
    public void sendBroadcast(Intent intent) {
        warnIfCallingFromSystemProcess();
        String resolvedType = intent.resolveTypeIfNeeded(getContentResolver());
        try {
            intent.prepareToLeaveProcess(this);
            ActivityManager.getService().broadcastIntent(
                    mMainThread.getApplicationThread(), intent, resolvedType, null,
                    Activity.RESULT_OK, null, null, null, AppOpsManager.OP_NONE, null, false, false,
                    getUserId());
        } catch (RemoteException e) {
            throw e.rethrowFromSystemServer();
        }
    }

这个方法中调用AMS的broadcastIntent方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
//AMS
public final int broadcastIntent(IApplicationThread caller,
            Intent intent, String resolvedType, IIntentReceiver resultTo,
            int resultCode, String resultData, Bundle resultExtras,
            String[] requiredPermissions, int appOp, Bundle bOptions,
            boolean serialized, boolean sticky, int userId) {
        enforceNotIsolatedCaller("broadcastIntent");
        synchronized(this) {
            intent = verifyBroadcastLocked(intent);

            final ProcessRecord callerApp = getRecordForAppLocked(caller);
            final int callingPid = Binder.getCallingPid();
            final int callingUid = Binder.getCallingUid();
            final long origId = Binder.clearCallingIdentity();
            int res = broadcastIntentLocked(callerApp,
                    callerApp != null ? callerApp.info.packageName : null,
                    intent, resolvedType, resultTo, resultCode, resultData, resultExtras,
                    requiredPermissions, appOp, bOptions, serialized, sticky,
                    callingPid, callingUid, userId);
            Binder.restoreCallingIdentity(origId);
            return res;
        }
    }

这个方法调用broadcastIntentLocked:

1
2
3
4
5
6
7
8
9
10
11
12
//AMS
@GuardedBy("this")
    final int broadcastIntentLocked(ProcessRecord callerApp,
            String callerPackage, Intent intent, String resolvedType,
            IIntentReceiver resultTo, int resultCode, String resultData,
            Bundle resultExtras, String[] requiredPermissions, int appOp, Bundle bOptions,
            boolean ordered, boolean sticky, int callingPid, int callingUid, int userId) {
    //...
    queue.scheduleBroadcastsLocked();
    //...
}

调用BroadcastQueue的scheduleBroadcastsLocked方法

1
2
3
4
5
6
7
8
9
10
11
12
//BroadcastQueue
public void scheduleBroadcastsLocked() {
        if (DEBUG_BROADCAST) Slog.v(TAG_BROADCAST, "Schedule broadcasts ["
                + mQueueName + "]: current="
                + mBroadcastsScheduled);

        if (mBroadcastsScheduled) {
            return;
        }
        mHandler.sendMessage(mHandler.obtainMessage(BROADCAST_INTENT_MSG, this));
        mBroadcastsScheduled = true;
    }

这个方法里通过BroadcastHandler发送了一个BROADCAST_INTENT_MSG消息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
//BroadcastQueue
private final class BroadcastHandler extends Handler {
        public BroadcastHandler(Looper looper) {
            super(looper, null, true);
        }

        @Override
        public void handleMessage(Message msg) {
            switch (msg.what) {
                case BROADCAST_INTENT_MSG: {
                    if (DEBUG_BROADCAST) Slog.v(
                            TAG_BROADCAST, "Received BROADCAST_INTENT_MSG");
                    processNextBroadcast(true);
                } break;
                //...
            }
        }
    }

在handleMessage方法中调用processNextBroadcast方法

1
2
3
4
5
6
//BroadcastQueue
 final void processNextBroadcast(boolean fromMsg) {
        synchronized (mService) {
            processNextBroadcastLocked(fromMsg, false);
        }
    }

这个方法调用processNextBroadcastLocked方法:

1
2
3
4
5
6
7
8
9
//BroadcastQueue
final void processNextBroadcastLocked(boolean fromMsg, boolean skipOomAdj) {
    //...
     setBroadcastTimeoutLocked(timeoutTime);
    //...
    deliverToRegisteredReceiverLocked(r, filter, r.ordered, recIdx);
    //...
    cancelBroadcastTimeoutLocked();
}

首先调用setBroadcastTimeoutLocked方法来设置超时时间

BroadcastReceiver超时时间,前台广播10秒，后台广播60秒。

1
2
3
// How long we allow a receiver to run before giving up on it.
static final int BROADCAST_FG_TIMEOUT = 10*1000;
static final int BROADCAST_BG_TIMEOUT = 60*1000;
1
2
3
4
5
6
7
8
//BroadcastQueue
final void setBroadcastTimeoutLocked(long timeoutTime) {
        if (! mPendingBroadcastTimeoutMessage) {
            Message msg = mHandler.obtainMessage(BROADCAST_TIMEOUT_MSG, this);
            mHandler.sendMessageAtTime(msg, timeoutTime);
            mPendingBroadcastTimeoutMessage = true;
        }
    }

在handleMessage中,如果执行超时，则会回调

1
2
3
4
5
6
7
8
9
10
11
@Override
        public void handleMessage(Message msg) {
            switch (msg.what) {
                //...
                case BROADCAST_TIMEOUT_MSG: {
                    synchronized (mService) {
                        broadcastTimeoutLocked(true);
                    }
                } break;
            }
        }

设置超时的部分，先看到这里。接下来看deliverToRegisteredReceiverLocked

1
2
3
4
5
6
7
8
9
//BroadcastQueue
private void deliverToRegisteredReceiverLocked(BroadcastRecord r,
            BroadcastFilter filter, boolean ordered, int index) {
    //...
    performReceiveLocked(filter.receiverList.app, filter.receiverList.receiver,
                        new Intent(r.intent), r.resultCode, r.resultData,
                        r.resultExtras, r.ordered, r.initialSticky, r.userId);
    //...
}

这个方法会调用performReceiveLocked方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
//BroadcastQueue
void performReceiveLocked(ProcessRecord app, IIntentReceiver receiver,
            Intent intent, int resultCode, String data, Bundle extras,
            boolean ordered, boolean sticky, int sendingUser) throws RemoteException {
        // Send the intent to the receiver asynchronously using one-way binder calls.
        if (app != null) {
            if (app.thread != null) {
                // If we have an app thread, do the call through that so it is
                // correctly ordered with other one-way calls.
                try {
                    app.thread.scheduleRegisteredReceiver(receiver, intent, resultCode,
                            data, extras, ordered, sticky, sendingUser, app.repProcState);
                // TODO: Uncomment this when (b/28322359) is fixed and we aren't getting
                // DeadObjectException when the process isn't actually dead.
                //} catch (DeadObjectException ex) {
                // Failed to call into the process.  It's dying so just let it die and move on.
                //    throw ex;
                } catch (RemoteException ex) {
                    // Failed to call into the process. It's either dying or wedged. Kill it gently.
                    synchronized (mService) {
                        Slog.w(TAG, "Can't deliver broadcast to " + app.processName
                                + " (pid " + app.pid + "). Crashing it.");
                        app.scheduleCrash("can't deliver broadcast");
                    }
                    throw ex;
                }
            } else {
                // Application has died. Receiver doesn't exist.
                throw new RemoteException("app.thread must not be null");
            }
        } else {
            receiver.performReceive(intent, resultCode, data, extras, ordered,
                    sticky, sendingUser);
        }
    }

调用Activity中的ApplicationThread的scheduleRegisteredReceiver方法

1
2
3
4
5
6
7
8
//ActivityThread$ApplicationThread
public void scheduleRegisteredReceiver(IIntentReceiver receiver, Intent intent,
                int resultCode, String dataStr, Bundle extras, boolean ordered,
                boolean sticky, int sendingUser, int processState) throws RemoteException {
            updateProcessState(processState, false);
            receiver.performReceive(intent, resultCode, dataStr, extras, ordered,
                    sticky, sendingUser);
        }

调用BroadcastQueue的ReceiverDispatcher的InnerReceiver的performReceive方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
//BroadcastQueue$ReceiverDispatcher$InnerReceiver
@Override
            public void performReceive(Intent intent, int resultCode, String data,
                    Bundle extras, boolean ordered, boolean sticky, int sendingUser) {
                final LoadedApk.ReceiverDispatcher rd;
                if (intent == null) {
                    Log.wtf(TAG, "Null intent received");
                    rd = null;
                } else {
                    rd = mDispatcher.get();
                }
                if (ActivityThread.DEBUG_BROADCAST) {
                    int seq = intent.getIntExtra("seq", -1);
                    Slog.i(ActivityThread.TAG, "Receiving broadcast " + intent.getAction()
                            + " seq=" + seq + " to " + (rd != null ? rd.mReceiver : null));
                }
                if (rd != null) {
                    rd.performReceive(intent, resultCode, data, extras,
                            ordered, sticky, sendingUser);
                } else {
                    // The activity manager dispatched a broadcast to a registered
                    // receiver in this process, but before it could be delivered the
                    // receiver was unregistered.  Acknowledge the broadcast on its
                    // behalf so that the system's broadcast sequence can continue.
                    if (ActivityThread.DEBUG_BROADCAST) Slog.i(ActivityThread.TAG,
                            "Finishing broadcast to unregistered receiver");
                    IActivityManager mgr = ActivityManager.getService();
                    try {
                        if (extras != null) {
                            extras.setAllowFds(false);
                        }
                        mgr.finishReceiver(this, resultCode, data, extras, false, intent.getFlags());
                    } catch (RemoteException e) {
                        throw e.rethrowFromSystemServer();
                    }
                }
            }

调用BroadcastQueue的ReceiverDispatcher的performReceive方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
//BroadcastQueue$ReceiverDispatcher
public void performReceive(Intent intent, int resultCode, String data,
                Bundle extras, boolean ordered, boolean sticky, int sendingUser) {
            final Args args = new Args(intent, resultCode, data, extras, ordered,
                    sticky, sendingUser);
            if (intent == null) {
                Log.wtf(TAG, "Null intent received");
            } else {
                if (ActivityThread.DEBUG_BROADCAST) {
                    int seq = intent.getIntExtra("seq", -1);
                    Slog.i(ActivityThread.TAG, "Enqueueing broadcast " + intent.getAction()
                            + " seq=" + seq + " to " + mReceiver);
                }
            }
            if (intent == null || !mActivityThread.post(args.getRunnable())) {
                if (mRegistered && ordered) {
                    IActivityManager mgr = ActivityManager.getService();
                    if (ActivityThread.DEBUG_BROADCAST) Slog.i(ActivityThread.TAG,
                            "Finishing sync broadcast to " + mReceiver);
                    args.sendFinished(mgr);
                }
            }
        }

这里调用了ReceiverDispatcher的Handler类型的mActivityThread的post方法，将一个runnable发送出去。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public final Runnable getRunnable() {
                return () -> {
                    //...
                    try {
                        ClassLoader cl = mReceiver.getClass().getClassLoader();
                        intent.setExtrasClassLoader(cl);
                        intent.prepareToEnterProcess();
                        setExtrasClassLoader(cl);
                        receiver.setPendingResult(this);
                        //回调onReceive
                        receiver.onReceive(mContext, intent);
                    } catch (Exception e) {
                        if (mRegistered && ordered) {
                            if (ActivityThread.DEBUG_BROADCAST) Slog.i(ActivityThread.TAG,
                                    "Finishing failed broadcast to " + mReceiver);
                            sendFinished(mgr);
                        }
                        if (mInstrumentation == null ||
                                !mInstrumentation.onException(mReceiver, e)) {
                            Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
                            throw new RuntimeException(
                                    "Error receiving broadcast " + intent
                                            + " in " + mReceiver, e);
                        }
                    }

                    if (receiver.getPendingResult() != null) {
                        finish();
                    }
                    Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
                };
            }

在这里回调onReceive

接下来看cancelBroadcastTimeoutLocked

1
2
3
4
5
6
7
//BroadcastQueue
final void cancelBroadcastTimeoutLocked() {
        if (mPendingBroadcastTimeoutMessage) {
            mHandler.removeMessages(BROADCAST_TIMEOUT_MSG, this);
            mPendingBroadcastTimeoutMessage = false;
        }
    }

移除了超时检测的消息,ANR不会触发。

如果没有在规定时间完成，则会处理BROADCAST_TIMEOUT_MSG消息

1
2
3
4
5
6
7
8
9
10
11
12
//BroadcastQueue$Handler
@Override
        public void handleMessage(Message msg) {
            switch (msg.what) {
                //...
                case BROADCAST_TIMEOUT_MSG: {
                    synchronized (mService) {
                        broadcastTimeoutLocked(true);
                    }
                } break;
            }
        }

调用broadcastTimeoutLocked，触发ANR

1
2
3
4
5
6
7
8
9
final void broadcastTimeoutLocked(boolean fromMsg) {
        //...

        if (!debugging && anrMessage != null) {
            // Post the ANR to the handler since we do not want to process ANRs while
            // potentially holding our lock.
            mHandler.post(new AppNotResponding(app, anrMessage));
        }
    }
