使用APT实现Android中View的注入

前言

APTAnnotation Processing Tool的简写,通过在Java编译时期,处理注解,生成代码。APT在ButterKnife、Dagger2等框架中都有应用。下面通过使用APT,实现一个类似ButterKnife的简单的View注入的框架。(参考Jett老师的课程)

ButterKnife的实现原理

既然准备实现类似ButterKnife的框架,那么我们就需要了解ButterKnife的实现原理。

ButterKnife的使用是从ButterKnife.bind()开始的:

1
2
3
4
5
@NonNull @UiThread
public static Unbinder bind(@NonNull Activity target) {
View sourceView = target.getWindow().getDecorView();
return bind(target, sourceView);
}

可以看到,bind方法中又调用了内部的bind方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
@NonNull @UiThread
public static Unbinder bind(@NonNull Object target, @NonNull View source) {
Class<?> targetClass = target.getClass();
if (debug) Log.d(TAG, "Looking up binding for " + targetClass.getName());
//获取构造函数
Constructor<? extends Unbinder> constructor = findBindingConstructorForClass(targetClass);

if (constructor == null) {
return Unbinder.EMPTY;
}

//noinspection TryWithIdenticalCatches Resolves to API 19+ only type.
try {
//返回实例
return constructor.newInstance(target, source);
} catch (IllegalAccessException e) {
throw new RuntimeException("Unable to invoke " + constructor, e);
} catch (InstantiationException e) {
throw new RuntimeException("Unable to invoke " + constructor, e);
} catch (InvocationTargetException e) {
Throwable cause = e.getCause();
if (cause instanceof RuntimeException) {
throw (RuntimeException) cause;
}
if (cause instanceof Error) {
throw (Error) cause;
}
throw new RuntimeException("Unable to create binding instance.", cause);
}
}

在这个bind方法中,主要通过findBindingConstructorForClass方法获取到构造函数,然后返回具体的实例。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
@Nullable @CheckResult @UiThread
private static Constructor<? extends Unbinder> findBindingConstructorForClass(Class<?> cls) {
//从缓存中查找
Constructor<? extends Unbinder> bindingCtor = BINDINGS.get(cls);
if (bindingCtor != null || BINDINGS.containsKey(cls)) {
if (debug) Log.d(TAG, "HIT: Cached in binding map.");
return bindingCtor;
}
//没有缓存过的,那么通过反射来获取
String clsName = cls.getName();
if (clsName.startsWith("android.") || clsName.startsWith("java.")
|| clsName.startsWith("androidx.")) {
if (debug) Log.d(TAG, "MISS: Reached framework class. Abandoning search.");
return null;
}
try {
Class<?> bindingClass = cls.getClassLoader().loadClass(clsName + "_ViewBinding");
//noinspection unchecked
bindingCtor = (Constructor<? extends Unbinder>) bindingClass.getConstructor(cls, View.class);
if (debug) Log.d(TAG, "HIT: Loaded binding class and constructor.");
} catch (ClassNotFoundException e) {
if (debug) Log.d(TAG, "Not found. Trying superclass " + cls.getSuperclass().getName());
//没有Class,则递归调用,从父类中查找
bindingCtor = findBindingConstructorForClass(cls.getSuperclass());
} catch (NoSuchMethodException e) {
throw new RuntimeException("Unable to find binding constructor for " + clsName, e);
}
//放入到缓存中
BINDINGS.put(cls, bindingCtor);
return bindingCtor;
}
}

findBindingConstructorForClass方法中,首先查询缓存中是否有需要的构造函数,如果没有,那么会通过反射查找,最终返回了ButterKnife生成的辅助类XXX_ViewBinding的构造函数。

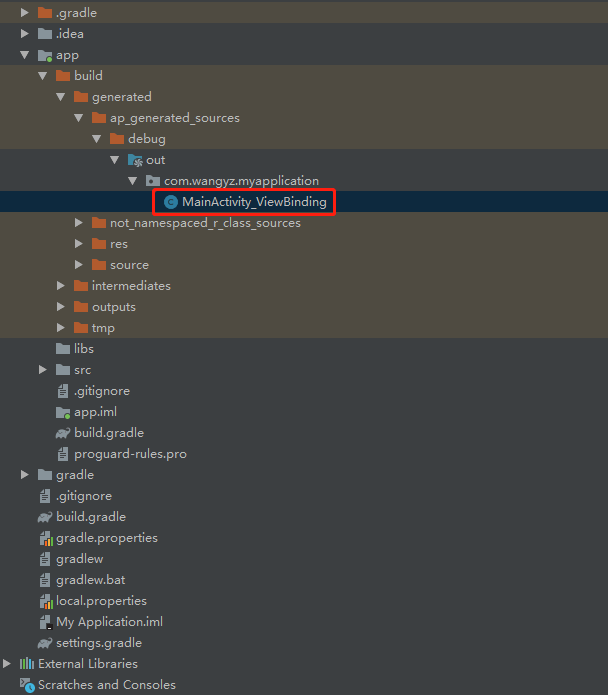

Build工程后,在生成的XXX_ViewBinding的Java文件的构造方法中,可以看到ButterKnife帮我们自己调用了findViewById

apt_build

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
//MainActivity_ViewBinding类中的方法
@UiThread
public MainActivity_ViewBinding(MainActivity target, View source) {
this.target = target;

target.tv = Utils.findRequiredViewAsType(source, R.id.tv, "field 'tv'", TextView.class);
}

//Utils类中方法
public static <T> T findRequiredViewAsType(View source, @IdRes int id, String who,
Class<T> cls) {
View view = findRequiredView(source, id, who);
return castView(view, id, who, cls);
}

//Utils类中方法
public static View findRequiredView(View source, @IdRes int id, String who) {
View view = source.findViewById(id);
if (view != null) {
return view;
}
String name = getResourceEntryName(source, id);
throw new IllegalStateException("Required view '"
+ name
+ "' with ID "
+ id
+ " for "
+ who
+ " was not found. If this view is optional add '@Nullable' (fields) or '@Optional'"
+ " (methods) annotation.");
}

可以得出结论,ButterKnife就是利用APT解析注解,在编译时生成了辅助类,用来帮助我们去调用findViewById方法,从而减少手动使用findViewById

实现自已的View注入框架

了解了原理后,就可以自己来实现简单的View注入框架了。

新建annotation模块

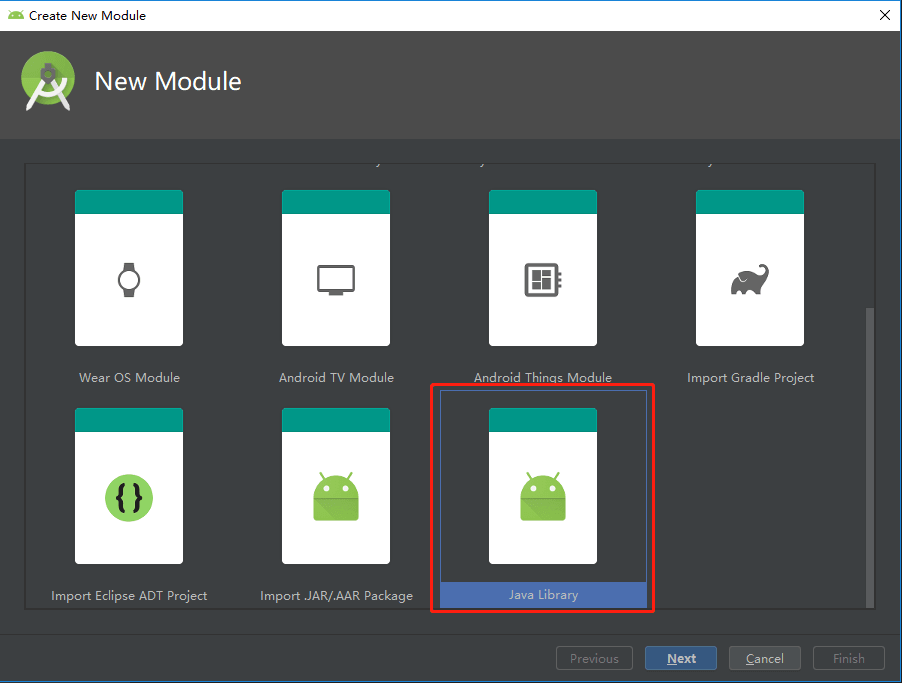

新建Java Library类型的Module,名称为annotation,用来定义注解

新建Java_Library

新建annotation_compiler模块

然后,同样的方法新建名为annotation_compiler的模块,用来处理注解

新建Binder模块

我们还需要新建一个名为Binder的模块,用来供用户直接调用

添加依赖

新建这三个Modeule后,需要为相应的Module添加依赖。app模块需要依赖上面的三个模块,annotation_compiler需要依赖annotation。

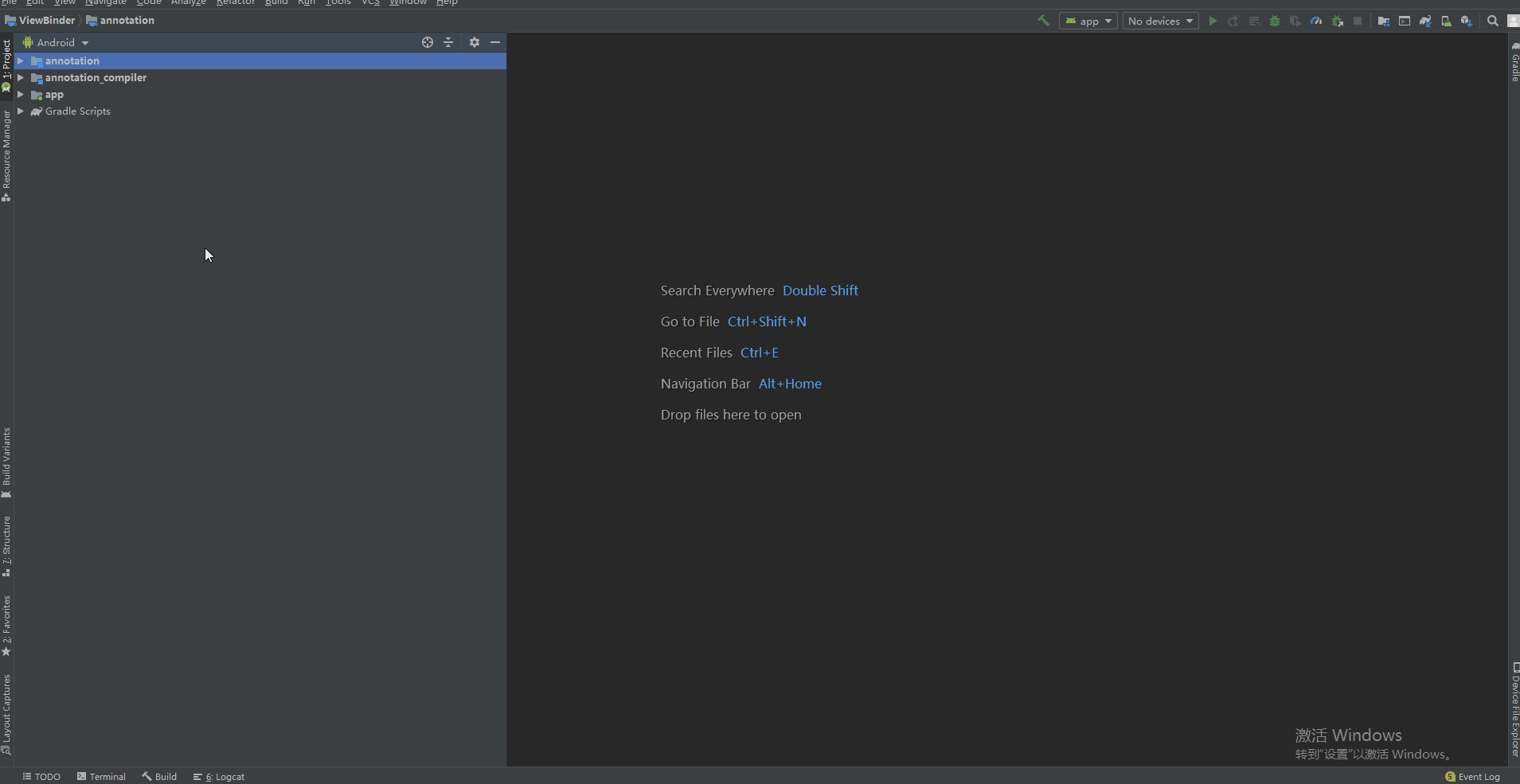

添加模块间依赖

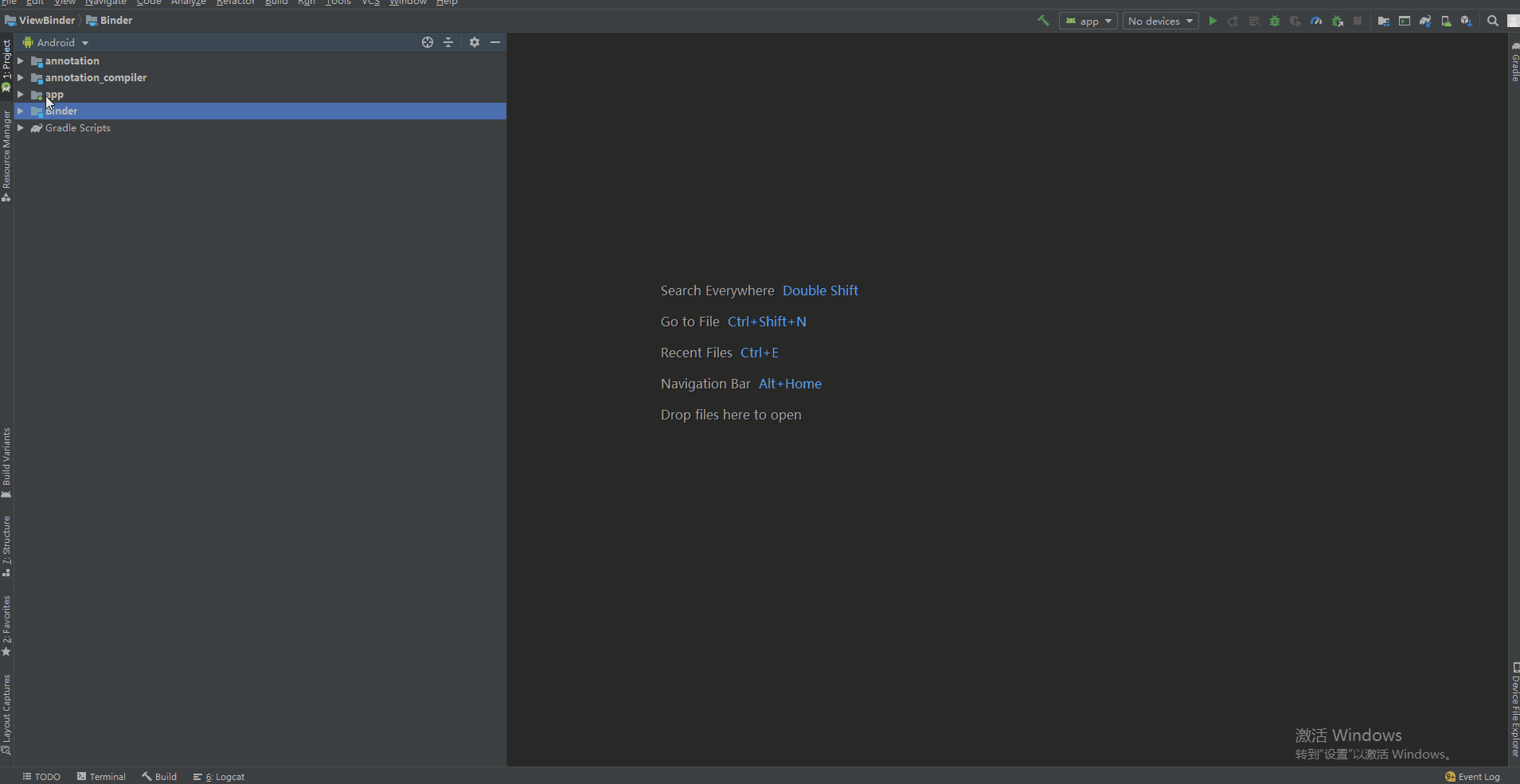

添加模块间依赖2

编写annotation模块代码

在annotation模块下新建BindView注解

1
2
3
4
5
@Target(ElementType.FIELD)
@Retention(RetentionPolicy.SOURCE)
public @interface BindView {
int value();
}

编写annotation_compiler模块代码

要使用APT,需要添加相关依赖,在annotation_compiler模块下的build.gradle文件中编辑

1
2
3
4
5
dependencies {
//注册APT功能
annotationProcessor 'com.google.auto.service:auto-service:1.0-rc4'
compileOnly 'com.google.auto.service:auto-service:1.0-rc4'
}

同步后就可以使用APT了。

在annotation_compiler模块下新建AnnotationsCompiler类,继承自AbstractProcessor

1
2
3
4
@AutoService(Processor.class)
public class AnnotationsCompiler extends AbstractProcessor {
//...
}

需要重写三个方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
/**
* 支持的Java版本
*
* @return
*/
@Override
public SourceVersion getSupportedSourceVersion() {
return SourceVersion.latestSupported();
}

/**
* 支持的注解
*
* @return
*/
@Override
public Set<String> getSupportedAnnotationTypes() {
Set<String> types = new HashSet<>();
types.add(BindView.class.getCanonicalName());
return types;
}

@Override
public synchronized void init(ProcessingEnvironment processingEnvironment) {
super.init(processingEnvironment);
filer = processingEnvironment.getFiler();
}

重写process方法,主要的逻辑都在这里实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
@Override
public boolean process(Set<? extends TypeElement> set, RoundEnvironment roundEnvironment) {
Set<? extends Element> elements = roundEnvironment.getElementsAnnotatedWith(BindView.class);

//类:TypeElement
//方法:ExecutableElement
//属性:VariableElement

Map<String, List<VariableElement>> map = new HashMap<>();

for (Element element : elements) {
VariableElement variableElement = (VariableElement) element;
String activityName = variableElement.getEnclosingElement().getSimpleName().toString();
List<VariableElement> variableElements = map.get(activityName);
if (variableElements == null) {
variableElements = new ArrayList<>();
map.put(activityName, variableElements);
}
variableElements.add(variableElement);
}

if (map.size() > 0) {
Writer writer = null;
Iterator<String> iterator = map.keySet().iterator();
while (iterator.hasNext()) {
String activityName = iterator.next();
List<VariableElement> variableElements = map.get(activityName);

//获取包名
TypeElement typeElement =
(TypeElement) variableElements.get(0).getEnclosingElement();
String packageName =
processingEnv.getElementUtils().getPackageOf(typeElement).toString();

try {
JavaFileObject sourceFile =
filer.createSourceFile(packageName + "." + activityName +
"_ViewBinding");
writer = sourceFile.openWriter();
writer.write("package " + packageName + ";\n");
writer.write("import " + PACKAGE_NAME_BINDER + ".IBinder;\n");
writer.write("public class "+activityName+"_ViewBinding implements IBinder<"+packageName+"."+activityName+">{\n");
writer.write("@Override\n");
writer.write("public void bind("+packageName+"."+activityName+" target){\n");
for(VariableElement variableElement:variableElements)
{
//获取名字
String variableName = variableElement.getSimpleName().toString();
//获取ID
int id = variableElement.getAnnotation(BindView.class).value();
//得到类型
TypeMirror typeMirror = variableElement.asType();
writer.write("target."+variableName+"=("+typeMirror+")target.findViewById("+id+");\n");
}
writer.write("\n}\n}");
} catch (Exception e) {
e.printStackTrace();
}
finally {
if(writer!=null)
{
try {
writer.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
}
}

return false;
}

编写Binder模块代码

在Binder模块下新建IBinder

1
2
3
4
5
6
7
8
9
10
public interface IBinder<T> {

/**
* 绑定activity
*
* @param t
*/
void bind(T t);

}

新建ViewBinder类,这个类是直接供用户调用的

1
2
3
4
5
6
7
8
9
10
11
12
public class ViewBinder {
public static void bind(Object activity) {
String name = activity.getClass().getName() + "_ViewBinding";
try {
Class<?> clazz = Class.forName(name);
IBinder binder = (IBinder) clazz.newInstance();
binder.bind(activity);
} catch (Exception e) {
e.printStackTrace();
}
}
}

在app模块调用

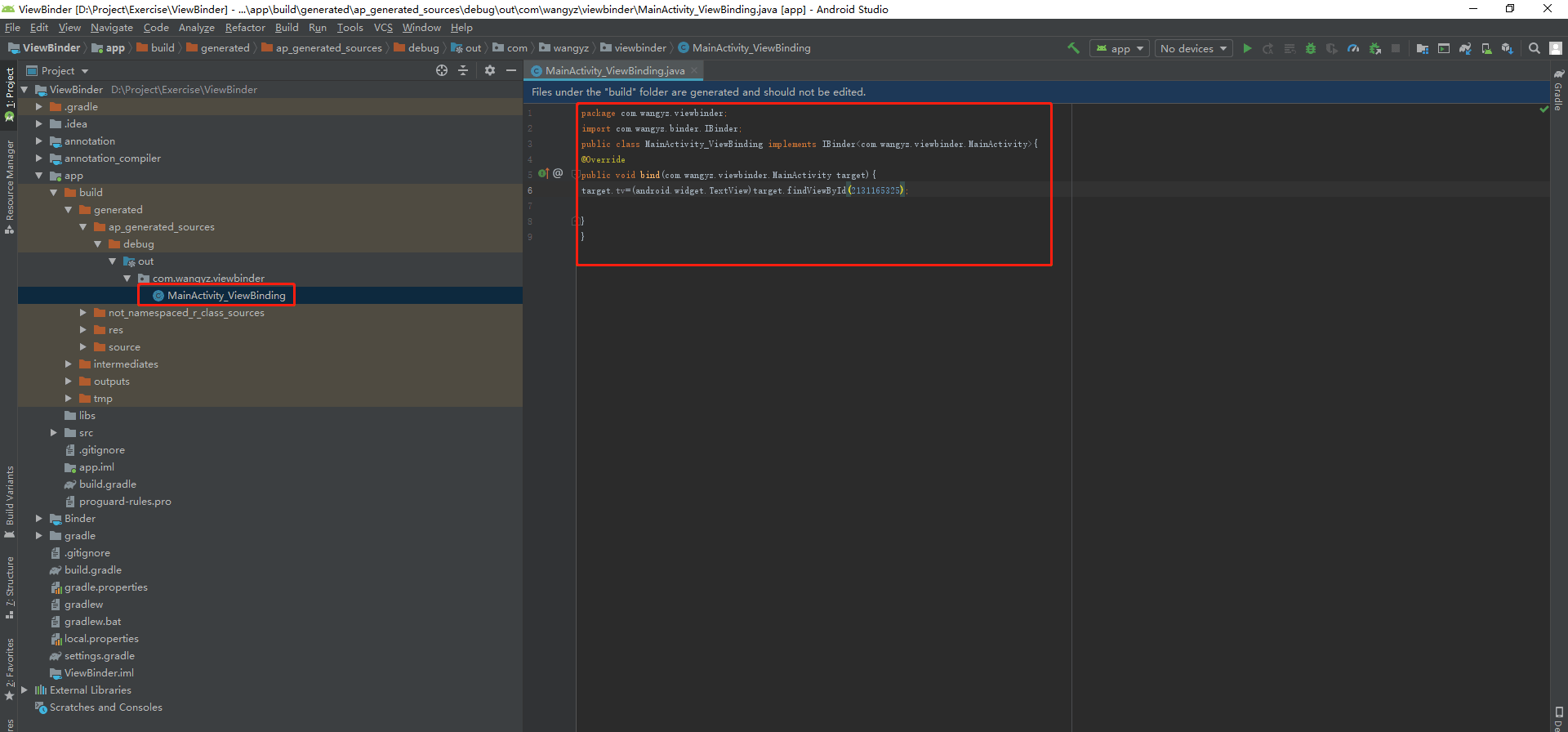

编写好上面的模块后,执行Build-Rebuild Project后,可以看到生成的java类文件

通过APT生成代码

在app模块的MainActivity中使用

1
2
3
4
5
6
7
8
9
10
11
@BindView(R.id.tv)
TextView tv;

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
//调用自己定义的ViewBinder
ViewBinder.bind(this);
tv.setText("Hi,ViewBinder!");
}

运行应用后,可以看到已经更改了TextView的显示,从而证明我们自己定义的ViewBinder是可以正常运行的。

结束

使用APT实现Android中View的注入,具体步骤就是上面描述的。当然,这个只是一个简单的示例,如果要开发出完善的框架,还有很多需要注意和优化的,这里只是记录开发的一般流程,以便后面需要时查找资料。

源码

源码地址:https://github.com/milovetingting/Samples/tree/master/ViewBinder
