Android中ANR的触发机制-Service篇

概述

ANR，即Application Not Responding，应用程序不响应。在Android系统中，对于事件的处理，都需要在一定的时间内完成，如果处理超时的话，就会触发ANR，弹出不响应的界面，让用户选择等待或是立即结束应用。ANR机制的简单流程：在事件发给应用处理前，会先发一个延时消息到系统的Looper中，如果应用在规定的时间内执行完成，则会移除掉延时消息。如果没有在规定时间内执行完，就会在处理延时消息中，触发ANR。

ANR主要场景：

  1. Service

  2. BroadcastReceiver

  3. ContentProvider

  4. Input:包括输入和触摸

触发机制分析

下面对Service进行源码分析，源码为Android9.0。

首先从Service的启动来分析。这里只分析startService的模式，bindService模式暂时不分析。

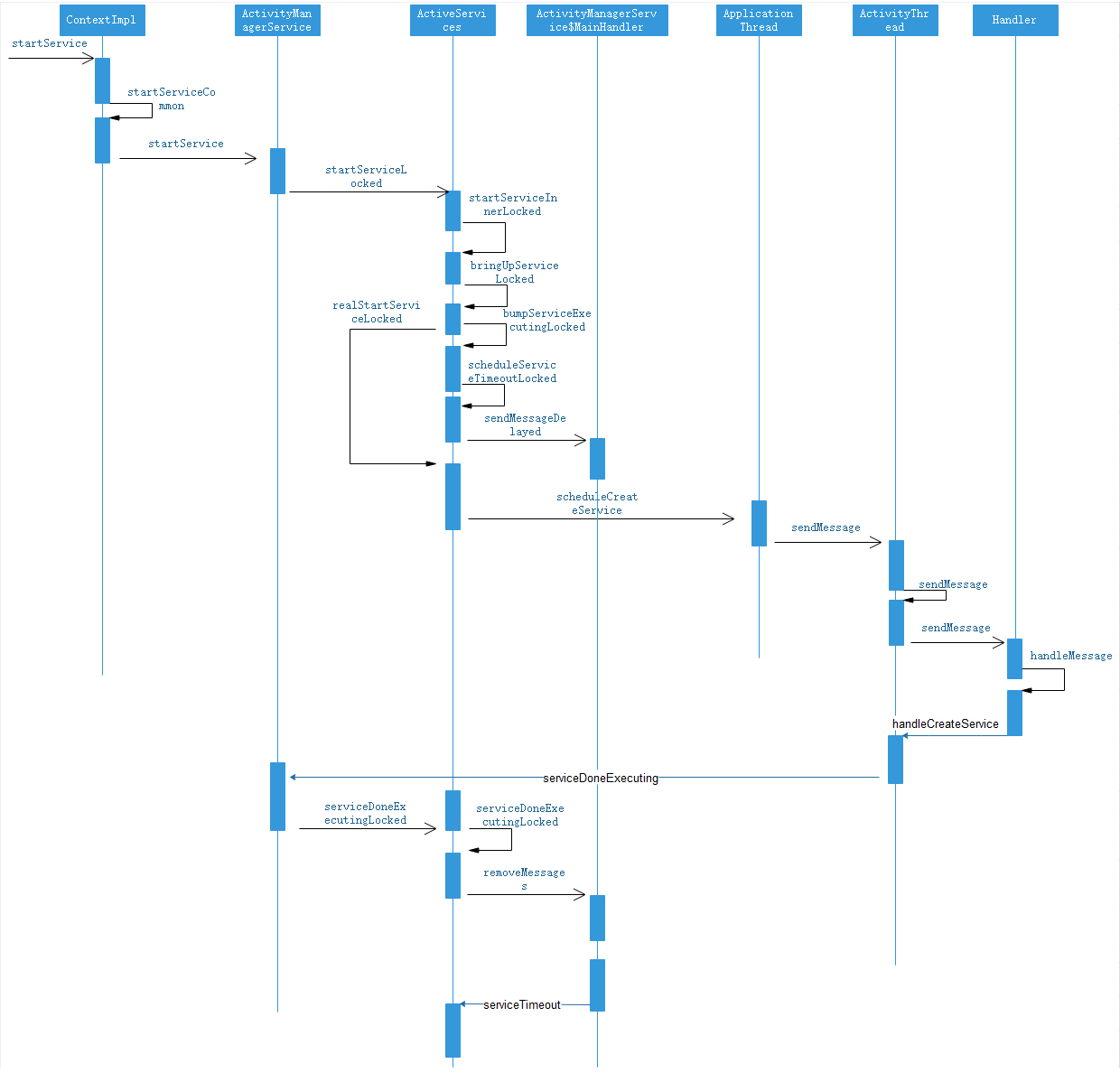

附一张时序图

Service的ANR机制

不管是通过Activity的startService还是非Activity的Context中的startService,最终都是调用ContextWrapper的startService方法：

1
2
3
4
5
//ContextWrapper
@Override
    public ComponentName startService(Intent service) {
        return mBase.startService(service);
    }

mBase对应的具体Context类为ContextImpl。ContextImpl的startService方法:

1
2
3
4
5
6
//ContextImpl
@Override
    public ComponentName startService(Intent service) {
        warnIfCallingFromSystemProcess();
        return startServiceCommon(service, false, mUser);
    }

startService方法调用startServiceCommon方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
//ContextImpl
private ComponentName startServiceCommon(Intent service, boolean requireForeground,
            UserHandle user) {
        try {
            validateServiceIntent(service);
            service.prepareToLeaveProcess(this);
            ComponentName cn = ActivityManager.getService().startService(
                mMainThread.getApplicationThread(), service, service.resolveTypeIfNeeded(
                            getContentResolver()), requireForeground,
                            getOpPackageName(), user.getIdentifier());
            if (cn != null) {
                if (cn.getPackageName().equals("!")) {
                    throw new SecurityException(
                            "Not allowed to start service " + service
                            + " without permission " + cn.getClassName());
                } else if (cn.getPackageName().equals("!!")) {
                    throw new SecurityException(
                            "Unable to start service " + service
                            + ": " + cn.getClassName());
                } else if (cn.getPackageName().equals("?")) {
                    throw new IllegalStateException(
                            "Not allowed to start service " + service + ": " + cn.getClassName());
                }
            }
            return cn;
        } catch (RemoteException e) {
            throw e.rethrowFromSystemServer();
        }
    }

在这个方法里，跨进程调用AMS的startService方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
//AMS
@Override
    public ComponentName startService(IApplicationThread caller, Intent service,
            String resolvedType, boolean requireForeground, String callingPackage, int userId)
            throws TransactionTooLargeException {
        enforceNotIsolatedCaller("startService");
        // Refuse possible leaked file descriptors
        if (service != null && service.hasFileDescriptors() == true) {
            throw new IllegalArgumentException("File descriptors passed in Intent");
        }

        if (callingPackage == null) {
            throw new IllegalArgumentException("callingPackage cannot be null");
        }

        if (DEBUG_SERVICE) Slog.v(TAG_SERVICE,
                "*** startService: " + service + " type=" + resolvedType + " fg=" + requireForeground);
        synchronized(this) {
            final int callingPid = Binder.getCallingPid();
            final int callingUid = Binder.getCallingUid();
            final long origId = Binder.clearCallingIdentity();
            ComponentName res;
            try {
                //调用ActiveServices的startServiceLocked方法
                res = mServices.startServiceLocked(caller, service,
                        resolvedType, callingPid, callingUid,
                        requireForeground, callingPackage, userId);
            } finally {
                Binder.restoreCallingIdentity(origId);
            }
            return res;
        }
    }

AMS中调用ActiveServices的startServiceLocked方法:

1
2
3
4
5
6
7
8
//ActiveServices
ComponentName startServiceLocked(IApplicationThread caller, Intent service, String resolvedType,
            int callingPid, int callingUid, boolean fgRequired, String callingPackage, final int userId)
            throws TransactionTooLargeException {
        //...
        ComponentName cmp = startServiceInnerLocked(smap, service, r, callerFg, addToStarting);
        return cmp;
    }

这个方法又调用了startServiceInnerLocked方法:

1
2
3
4
5
6
7
8
9
10
//ActiveServices
ComponentName startServiceInnerLocked(ServiceMap smap, Intent service, ServiceRecord r,
            boolean callerFg, boolean addToStarting) throws TransactionTooLargeException {
        //...
        String error = bringUpServiceLocked(r, service.getFlags(), callerFg, false, false);
        if (error != null) {
            return new ComponentName("!!", error);
        }
        //...
    }

这个方法调用bringUpServiceLocked方法:

1
2
3
4
5
6
7
8
//ActiveServices
private String bringUpServiceLocked(ServiceRecord r, int intentFlags, boolean execInFg,
            boolean whileRestarting, boolean permissionsReviewRequired)
            throws TransactionTooLargeException {
        //...
        realStartServiceLocked(r, app, execInFg);
        //...
    }

这个方法里调用realStartServiceLocked方法:

1
2
3
4
5
6
7
8
9
10
11
//ActiveServices
private final void realStartServiceLocked(ServiceRecord r,
            ProcessRecord app, boolean execInFg) throws RemoteException {
        //...
        bumpServiceExecutingLocked(r, execInFg, "create");
        //...
        app.thread.scheduleCreateService(r, r.serviceInfo,
                    mAm.compatibilityInfoForPackageLocked(r.serviceInfo.applicationInfo),
                    app.repProcState);
        //...
    }

这里先调用了bumpServiceExecutingLocked方法用来设置超时消息:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
//ActiveServices
private final void bumpServiceExecutingLocked(ServiceRecord r, boolean fg, String why) {
        if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, ">>> EXECUTING "
                + why + " of " + r + " in app " + r.app);
        else if (DEBUG_SERVICE_EXECUTING) Slog.v(TAG_SERVICE_EXECUTING, ">>> EXECUTING "
                + why + " of " + r.shortName);

        // For b/34123235: Services within the system server won't start until SystemServer
        // does Looper.loop(), so we shouldn't try to start/bind to them too early in the boot
        // process. However, since there's a little point of showing the ANR dialog in that case,
        // let's suppress the timeout until PHASE_THIRD_PARTY_APPS_CAN_START.
        //
        // (Note there are multiple services start at PHASE_THIRD_PARTY_APPS_CAN_START too,
        // which technically could also trigger this timeout if there's a system server
        // that takes a long time to handle PHASE_THIRD_PARTY_APPS_CAN_START, but that shouldn't
        // happen.)
        boolean timeoutNeeded = true;
        if ((mAm.mBootPhase < SystemService.PHASE_THIRD_PARTY_APPS_CAN_START)
                && (r.app != null) && (r.app.pid == android.os.Process.myPid())) {

            Slog.w(TAG, "Too early to start/bind service in system_server: Phase=" + mAm.mBootPhase
                    + " " + r.getComponentName());
            timeoutNeeded = false;
        }

        long now = SystemClock.uptimeMillis();
        if (r.executeNesting == 0) {
            r.executeFg = fg;
            ServiceState stracker = r.getTracker();
            if (stracker != null) {
                stracker.setExecuting(true, mAm.mProcessStats.getMemFactorLocked(), now);
            }
            if (r.app != null) {
                r.app.executingServices.add(r);
                r.app.execServicesFg |= fg;
                if (timeoutNeeded && r.app.executingServices.size() == 1) {
                    scheduleServiceTimeoutLocked(r.app);
                }
            }
        } else if (r.app != null && fg && !r.app.execServicesFg) {
            r.app.execServicesFg = true;
            if (timeoutNeeded) {
                scheduleServiceTimeoutLocked(r.app);
            }
        }
        r.executeFg |= fg;
        r.executeNesting++;
        r.executingStart = now;
    }

这个方法中调用scheduleServiceTimeoutLocked方法:

1
2
3
4
5
6
7
8
9
10
11
//ActiveServices
void scheduleServiceTimeoutLocked(ProcessRecord proc) {
        if (proc.executingServices.size() == 0 || proc.thread == null) {
            return;
        }
        Message msg = mAm.mHandler.obtainMessage(
                ActivityManagerService.SERVICE_TIMEOUT_MSG);
        msg.obj = proc;
        mAm.mHandler.sendMessageDelayed(msg,
                proc.execServicesFg ? SERVICE_TIMEOUT : SERVICE_BACKGROUND_TIMEOUT);
    }

调用ActivityManagerService的MainHandler发送一个SERVICE_TIMEOUT消息，这里具体根据是否为前台消息发送的消息不同。

前台服务超时时间：20s,后台服务超时时间:200s

1
2
3
4
5
// How long we wait for a service to finish executing.
   static final int SERVICE_TIMEOUT = 20*1000;

   // How long we wait for a service to finish executing.
   static final int SERVICE_BACKGROUND_TIMEOUT = SERVICE_TIMEOUT * 10;

设置超时消息就先看到这里，接着看启动Service

调用ProcessRecord中的IApplicationThread类型的thread属性的scheduleCreateService方法，即调用到了ActivityThread的内部类ApplicationThread的scheduleCreateService方法:

1
2
3
4
5
6
7
8
9
10
11
//ActivityThread$ApplicationThrad
public final void scheduleCreateService(IBinder token,
                ServiceInfo info, CompatibilityInfo compatInfo, int processState) {
            updateProcessState(processState, false);
            CreateServiceData s = new CreateServiceData();
            s.token = token;
            s.info = info;
            s.compatInfo = compatInfo;

            sendMessage(H.CREATE_SERVICE, s);
        }

这个方法里调用了ActivityThread的sendMessage方法:

1
2
3
4
//ActivityThread
void sendMessage(int what, Object obj) {
        sendMessage(what, obj, 0, 0, false);
    }

最终通过Handler发送了一个消息出去

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
//Handler
private void sendMessage(int what, Object obj, int arg1, int arg2, boolean async) {
        if (DEBUG_MESSAGES) Slog.v(
            TAG, "SCHEDULE " + what + " " + mH.codeToString(what)
            + ": " + arg1 + " / " + obj);
        Message msg = Message.obtain();
        msg.what = what;
        msg.obj = obj;
        msg.arg1 = arg1;
        msg.arg2 = arg2;
        if (async) {
            msg.setAsynchronous(true);
        }
        mH.sendMessage(msg);
    }

在mH的handleMessage中回调处理:

1
2
3
4
5
6
//ActivityThread$H.handleMessage
case CREATE_SERVICE:
                    Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, ("serviceCreate: " + String.valueOf(msg.obj)));
                    handleCreateService((CreateServiceData)msg.obj);
                    Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
                    break;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
//ActivityThread
 private void handleCreateService(CreateServiceData data) {
        // If we are getting ready to gc after going to the background, well
        // we are back active so skip it.
        unscheduleGcIdler();

        LoadedApk packageInfo = getPackageInfoNoCheck(
                data.info.applicationInfo, data.compatInfo);
        Service service = null;
        try {
            java.lang.ClassLoader cl = packageInfo.getClassLoader();
            service = packageInfo.getAppFactory()
                    .instantiateService(cl, data.info.name, data.intent);
        } catch (Exception e) {
            if (!mInstrumentation.onException(service, e)) {
                throw new RuntimeException(
                    "Unable to instantiate service " + data.info.name
                    + ": " + e.toString(), e);
            }
        }

        try {
            if (localLOGV) Slog.v(TAG, "Creating service " + data.info.name);

            ContextImpl context = ContextImpl.createAppContext(this, packageInfo);
            context.setOuterContext(service);

            Application app = packageInfo.makeApplication(false, mInstrumentation);
            service.attach(context, this, data.info.name, data.token, app,
                    ActivityManager.getService());
            //完成Service的创建，并回调onCreate方法
            service.onCreate();
            mServices.put(data.token, service);
            try {
                //通知移除延时消息
                ActivityManager.getService().serviceDoneExecuting(
                        data.token, SERVICE_DONE_EXECUTING_ANON, 0, 0);
            } catch (RemoteException e) {
                throw e.rethrowFromSystemServer();
            }
        } catch (Exception e) {
            if (!mInstrumentation.onException(service, e)) {
                throw new RuntimeException(
                    "Unable to create service " + data.info.name
                    + ": " + e.toString(), e);
            }
        }
    }

如果在规定的时间内完成处理，则会调用AMS的serviceDoneExecuting:

1
2
3
4
5
6
7
8
9
10
//AMS
public void serviceDoneExecuting(IBinder token, int type, int startId, int res) {
        synchronized(this) {
            if (!(token instanceof ServiceRecord)) {
                Slog.e(TAG, "serviceDoneExecuting: Invalid service token=" + token);
                throw new IllegalArgumentException("Invalid service token");
            }
            mServices.serviceDoneExecutingLocked((ServiceRecord)token, type, startId, res);
        }
    }

这个方法调用ActiveServices中的serviceDoneExecutingLocked方法:

1
2
3
4
5
6
//ActiveServices
void serviceDoneExecutingLocked(ServiceRecord r, int type, int startId, int res) {
        //...
        serviceDoneExecutingLocked(r, inDestroying, inDestroying);
        //...
    }

这个方法会调用另一个重载方法:

1
2
3
4
5
6
7
//ActiveServices
private void serviceDoneExecutingLocked(ServiceRecord r, boolean inDestroying,
            boolean finishing) {
        //...
        mAm.mHandler.removeMessages(ActivityManagerService.SERVICE_TIMEOUT_MSG, r.app);
        //...
    }

在这个方法里移除了前面的延时消息，就不会触发ANR。

如果没有及时移除这个消息，那么将会在ActivityManagerService的MainHandler中触发:

MainHandler收到消息的处理:

1
2
3
4
5
6
7
8
9
10
11
//ActivityManagerService$MainHandler.handleMessage
@Override
        public void handleMessage(Message msg) {
            switch (msg.what) {
                //...
                case SERVICE_TIMEOUT_MSG: {
                    mServices.serviceTimeout((ProcessRecord)msg.obj);
                } break;
                //...
            }
        }

这个方法调用ActiveServices中的serviceTimeout方法:

1
2
3
4
5
6
void serviceTimeout(ProcessRecord proc) {
        //...
        if (anrMessage != null) {
            mAm.mAppErrors.appNotResponding(proc, null, null, false, anrMessage);
        }
    }

在这里弹出了不响应的界面。
